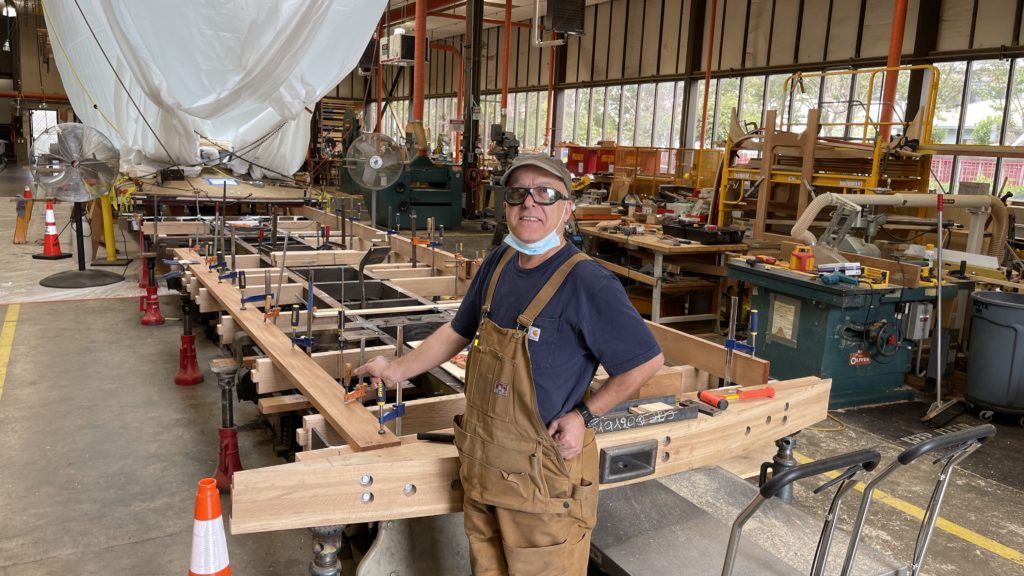

This cable car is currently being reconstructed at Muni’s Cable Car Carpentry Shop. When it re-enters service it is slated to be painted in the green and red livery with gray roof used by Market Street Railway Company from 1921 to 1926.

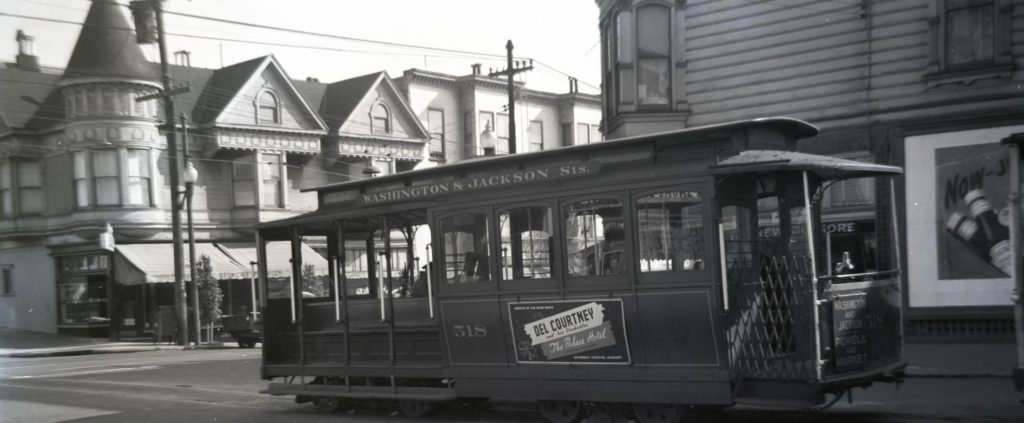

Only a small amount of the frame remains from its predecessor cable car that was built at Muni’s old Elkton Shops in 1962 to replace an earlier car. Then numbered 518, that 1962 car was the first cable car that Muni built essentially new since it took over the Powell cable car operation from predecessor owner Market Street Railway Company in 1944. Muni simplified the construction, using plywood for the roof instead of the traditional tongue-and-groove wood strips. After 60 years, the badly-deteriorated car was taken in for a complete rebuilding, with the traditional methods and high quality Muni has displayed since the 1980s.
Powell Street Cable Car Specifications
Number of Cars
28 on roster (Maximum of 19 in service at one time)
Capacity
60 (29 seated + 31 standing)
Weight
15,500 lb (7,030 kg)
Length
27′ 6″ (8.4 m)
Height
10′ 5″ (3.2 m)
Width
8′ 0″ (2.4 m)
Track Gauge
3′ 6″ (1.07 m)
Round Trip Route Length
Powell-Mason line: 3.2 mi (5.15 km)
Powell-Hyde line: 4.3 mi (6.92 km)
Cable Speed
9.5 mph (15.3 km/h)
Cable Lengths
Powell: 9,300 ft (2,835 m)
Mason: 10,300 ft (3,140 m)
Hyde: 16,000 ft (4875 m)
Cable Motive Power
510-horsepower electric motor driving four cable winders at powerhouse
Powerhouse and Carbarn
Washington and Mason Streets
Built 1887 by Ferries & Cliff House Railway
Rebuilt 1906 by United Railroads
Rebuilt 1982-84 by San Francisco Municipal Railway
Steepest Grades on Powell Lines
Powell: 17% between Bush & Pine
Mason: 17% between Union & Green
Hyde: 21% between Bay & Chestnut
