San Francisco's World Famous Cable Cars

No. 24 - The Willie Mays Cable Car - Market Street Railway
No. 24

The Willie Mays Cable Car

Built 1887 for Mahoney Bros. Rebuilt 1958 by Muni

Car 24 is very special, for both historic and sentimental reasons.

Built in 1887, it is one of three cable cars remaining from the original Ferries & Cliff House Railway fleet with substantial historic fabric still intact.  (Powell Cars 17 and 27 are the others). Originally numbered 534, it became 524 in 1929, and 24 in 1973, when Muni dropped the first number from the Powell fleet.

No. 24 - The Willie Mays Cable Car

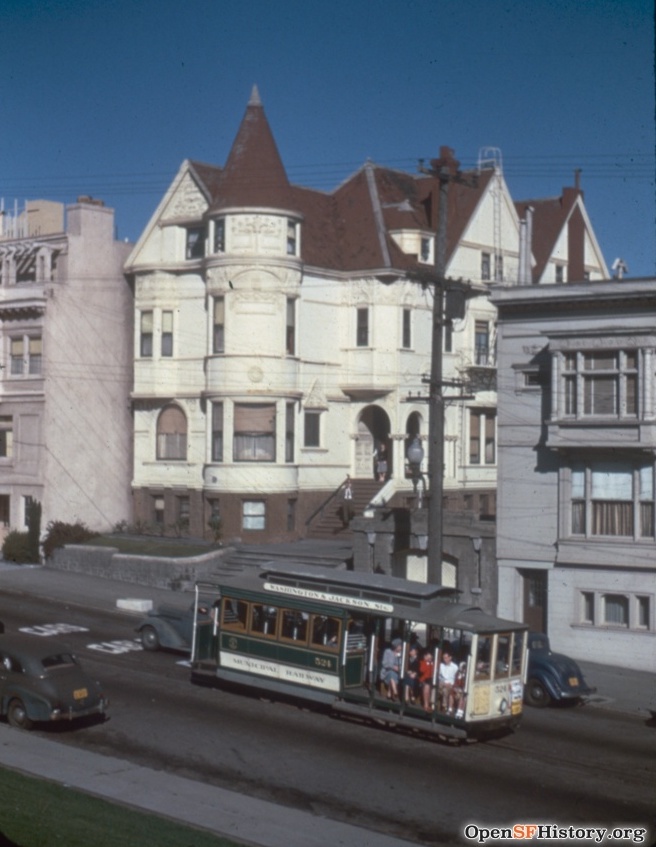

Car 524 on Steiner Street at the end of the Washington-Jackson line, about 1947. Photo from sf.history.org

Originally assigned to the Sacramento-Clay line, it moved over to the Washington-Jackson line (which ran from Powell and Market through Pacific Heights to Alta Plaza Park) after the 1906 earthquake and fire destroyed the Powell fleet.

No. 24 - The Willie Mays Cable Car

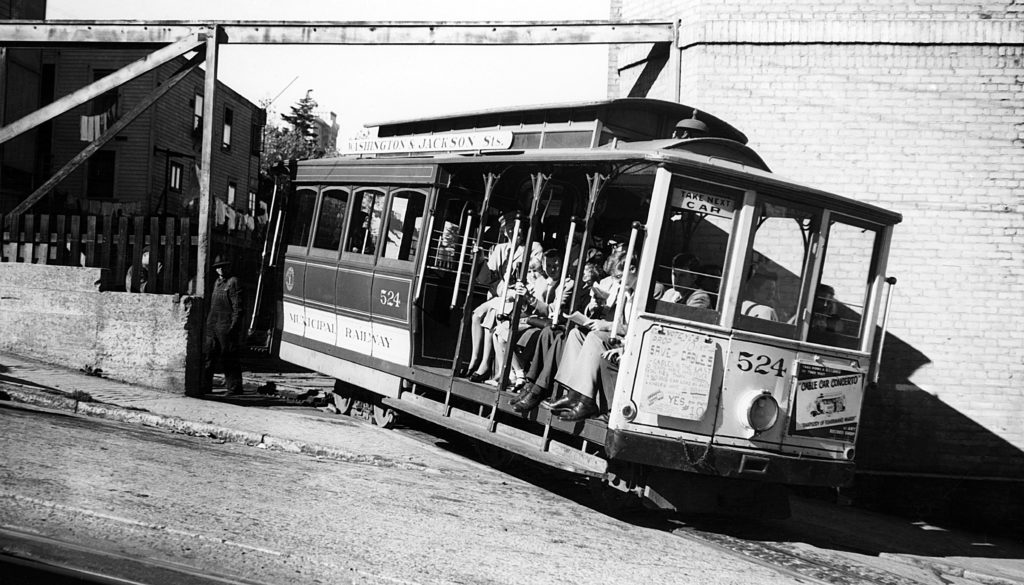

Car 524 leaves the Washington-Mason cable car barn with Friedel Klussmann and cable car supporters on a charter to drum up support for her successful save the cable car effort in 1947. SFMTA Archive

Just before the November 1947 election, it was chartered by activist Friedel Klussmann and other advocates to draw last-minute attention to their (successful) efforts aimed at saving the Powell cable cars from being replaced by buses, as the mayor of the day wanted to do.

As Car 524, it was the only active cable car to leave its hometown twice, once to Chicago and once to Los Angeles.

No. 24 - The Willie Mays Cable Car
Powell Cable Car 524 skirts the shore of Lake Michigan at the 1949 Chicago Railroad Fair. MSR Archive

In 1949, Western Pacific Railroad sponsored its participation in the Chicago Railroad Fair, where Car 524 ran on a short cable operation along the shores of Lake Michigan. To make sure everyone knew positively where it came from, the signage on the side was changed from just “Municipal Railway” to “Municipal Railway of San Francisco”. Many Powell cable cars later received this lettering, modeled on today’s Car 8.

No. 24 - The Willie Mays Cable Car

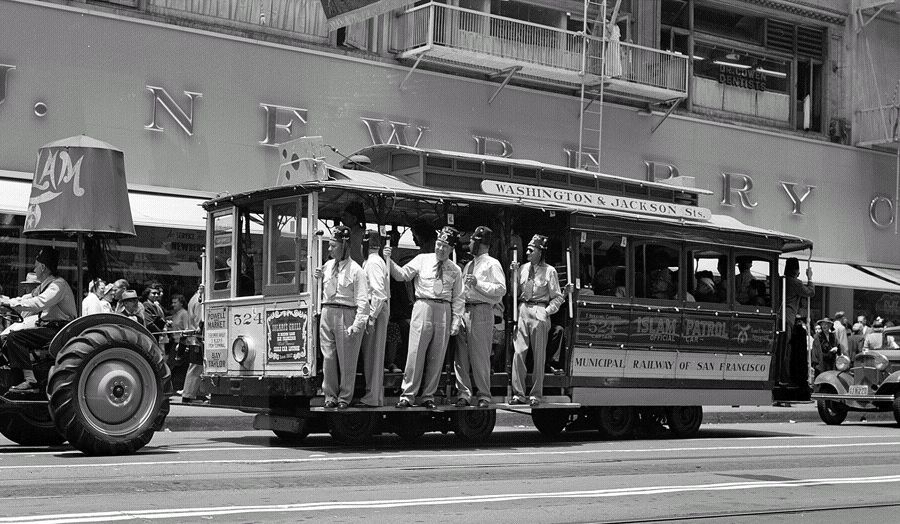

Car 524 on rubber tires, towed by a tractor through the streets of Los Angeles in 1950 for a Shriner’s parade. MSR Archive

When the cable car system was consolidated and routes changed in the 1950s, Car 524 was the last car to operate on the Washington-Jackson line to Pacific Heights in 1956, and has operated on both the replacement Powell-Hyde line and the Powell-Mason line ever since.

No. 24 - The Willie Mays Cable Car
Left to right, Willie Mays, San Francisco Mayor Ed Lee, Giants President and CEO Larry Baer, and SFMTA Board Member Malcolm Heinecke chat in front of Willie’s cable car No. 24 before its 2016 dedication ceremony. Rick Laubscher photo

In 2016, the City and County of San Francisco dedicated Car 24 to the most famous #24 of all, the greatest San Francisco Giant, Willie Mays. The car now carries a plaque celebrating Mays.

Powell Street Cable Car Specifications

Number of Cars
28 on roster (Maximum of 19 in service at one time)

Capacity
60 (29 seated + 31 standing)

Weight
15,500 lb (7,030 kg)

Length
27′ 6″ (8.4 m)

Height
10′ 5″ (3.2 m)

Width
8′ 0″ (2.4 m)

Track Gauge
3′ 6″ (1.07 m)

Round Trip Route Length
Powell-Mason line: 3.2 mi (5.15 km)
Powell-Hyde line: 4.3 mi (6.92 km)

Cable Speed
9.5 mph (15.3 km/h)

Cable Lengths
Powell: 9,300 ft (2,835 m)
Mason: 10,300 ft (3,140 m)
Hyde: 16,000 ft (4875 m)

Cable Motive Power
510-horsepower electric motor driving four cable winders at powerhouse

Powerhouse and Carbarn
Washington and Mason Streets

Built 1887 by Ferries & Cliff House Railway

Rebuilt 1906 by United Railroads

Rebuilt 1982-84 by San Francisco Municipal Railway

Steepest Grades on Powell Lines
Powell: 17% between Bush & Pine
Mason: 17% between Union & Green
Hyde: 21% between Bay & Chestnut
